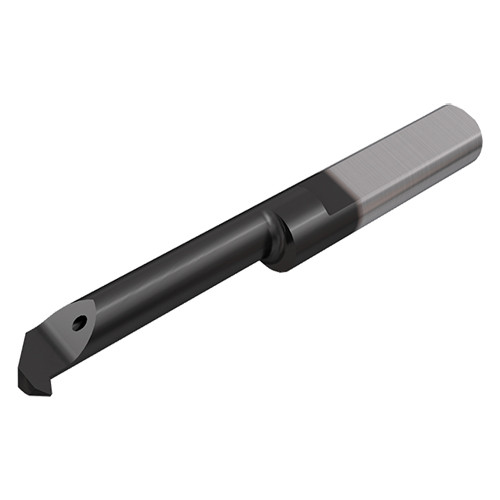

PICCO R 005.0205-15NIC908 IC908
Inserts with a 60° internal thread profile and inner coolant channel, for .094″ min. bore diameter.

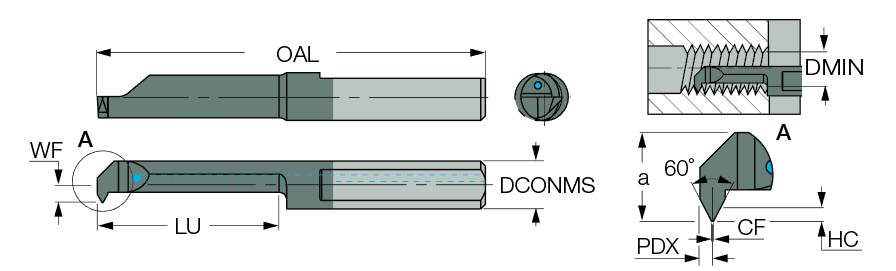

| Connection Diameter Machine Side (DCONMS) | 0.199″ | Central Flat (CF) | 0.002″ |
| Maximum Bore Diameter (DMAX) | 0.49″ | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 0.197″ | Cutting Edge Material | Carbide |
| Functional Length (LF) | 1.417″ | Style | Corner Radius |
| Reduced Body Diameter Length (LDRED) | 0.551″ | Length Group | Regular |
| Cutting Direction (HAND) | Right Hand | Series/List # | 601 |
| Coating | TiAlN | Tool Type | Solid Threading Tools |
| Grade | IC908 | Measurement Type | Inch |
| Application | | Threading (Int.) | | Thread Pitch (TP) | 0.5 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Standard | THFT | |
| Front End Width (a) | 0.173″ | Overall Length (OAL) | 4″ |
| Functional Width (WF) | 0.075″ | Single / Double End | Single End |
| Usable Length (LU) | 0.551″ | Thread Form Type (THFT) | VP60 |
| Overhang Minimum (OHN) | 0.123″ |
Product Features
| Family Description | Inserts with a 60° internal thread profile and inner coolant channel, for .094″ min. bore diameter. | Country of Origin | Germany |
| Remarks | Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H ANSI/ASME B1.1 - Internal tolerance: 2B |
Shipping Info
Package Weight
0.017
