RM-SET.8125H6T-B-C1S

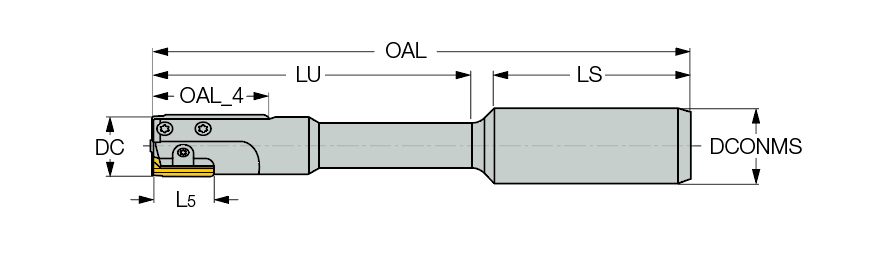

| Cutting Diameter (DC) | 13/16″ | Overall Length (OAL) | 6.73″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Shank Length (LS) | 2.2″ |
| Application | | Stacked Plates | Through & Axial Groove | Through & Perpendicular Holes | Through & Radial Groove | Through Hole | | Body Material | Steel |
| Usable Length (LU) | 4.33″ | Tool Type | Indexable Reaming Tools |
| Insert Seat Size Code (SSC) | 3.0 | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.67″ |
Product Features
| Family Description | Single-edged indexable reamers, used for through holes. | Country of Origin | Italy |
| Remarks | For user guied and cutting conditions, click on More Info |
Shipping Info
Package Weight
0.717
