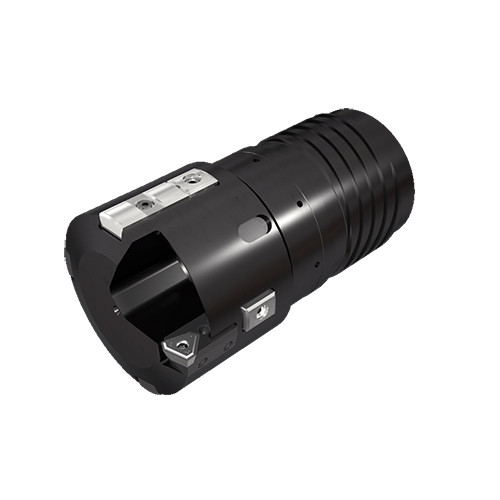

IDC-EC 3.150-3.424

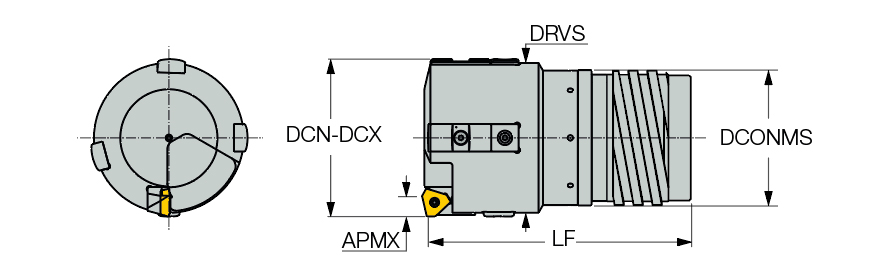

| Connection Diameter Machine Side (DCONMS) | 2.756″ | Measurement Type | Inch |
| Flute Count (NOF) | 1 | Application | | Deep Drilling | |
| Cutting Diameter Maximum (DCX) | 3.424″ | Depth of Cut Maximum (APMX) | 0.4094″ |
| Cutting Diameter Minimum (DCN) | 3.15″ | Drive Size (DRVS) | 3.268″ |
| Body Material | Steel | Functional Length (LF) | 7.087″ |
Product Features
| Family Description | Double Tube Counterboring Drills with Outer 4-Start Thread Connection, Cartridges and Adjustable Diameter (1.575-7.243″ dia.). | Country of Origin | Japan |

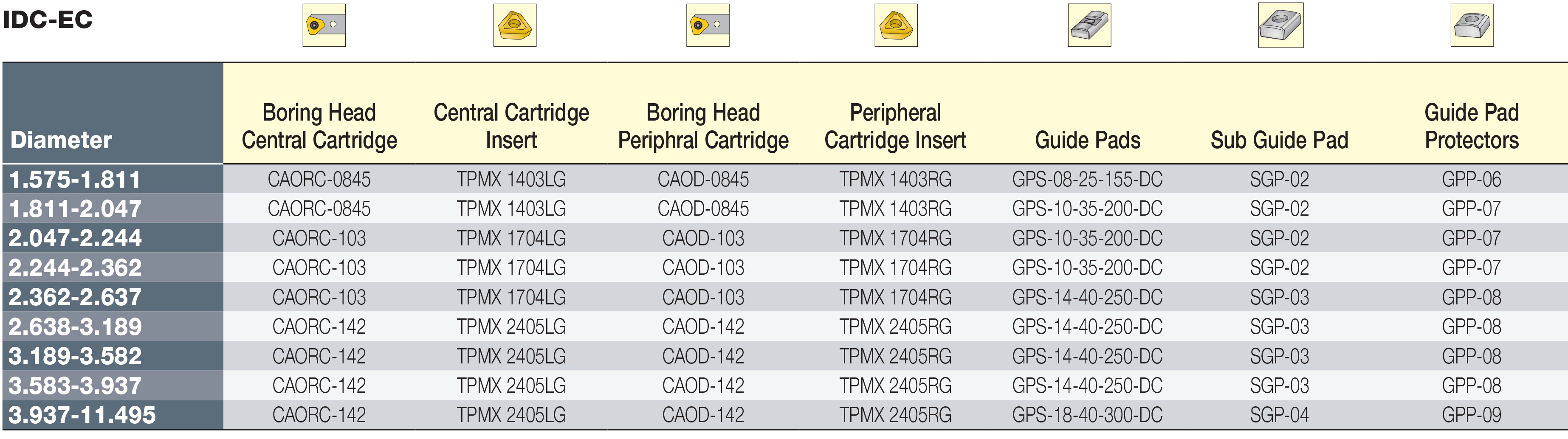

| Remarks | For spare parts and insert information, click on More Info Ordering example: DDC-EC 130.35 |
