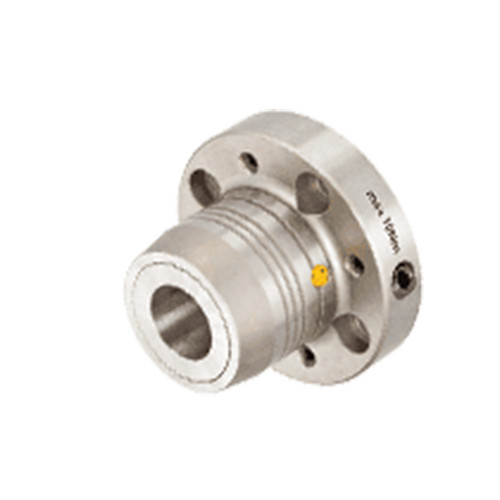

ADJ HYDRO 20 D70
Radial and angular adjustable hydraulic flanges, for Semi-Finish and finish applications

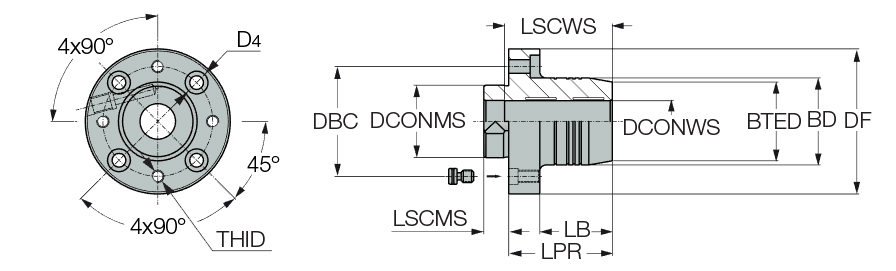

| Connection Diameter Machine Side (DCONMS) | #63 | Shank Type | HSK |
| Body Length Maximum (LBX) | 3.38″ | Tool Type | ADJ (Adjustable Flanges) |
| Body Length (LB) | 35 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Workpiece Side (DCONWS) | 20 mm | Nose Length | 1.5354″ |
| Body Diameter (BD) | 42 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 50 mm | Body Material | Steel |
| Overall Length (OAL) | 4.64″ |
Product Features
| Family Description | Radial and angular adjustable hydraulic flanges, for Semi-Finish and finish applications | Country of Origin | Germany |
| Remarks | Chucking forces will be reduced by 25% if reduction sleeves are used. Reduction sleeves are available for 3 to 16 mm bore diameters (order separately). |
Shipping Info
Package Weight
1.640
